I/O Pin Information

MYC-AM335X CPU module preserves the multiplexing definitions of AM335X series processor’s pin. Customers can extend or change these definitions to meet product driver development. In order to ensure the compatibility and stability, please make certain that the useless pins are disconnected. The interface pin order is shown in Figure 4-1:

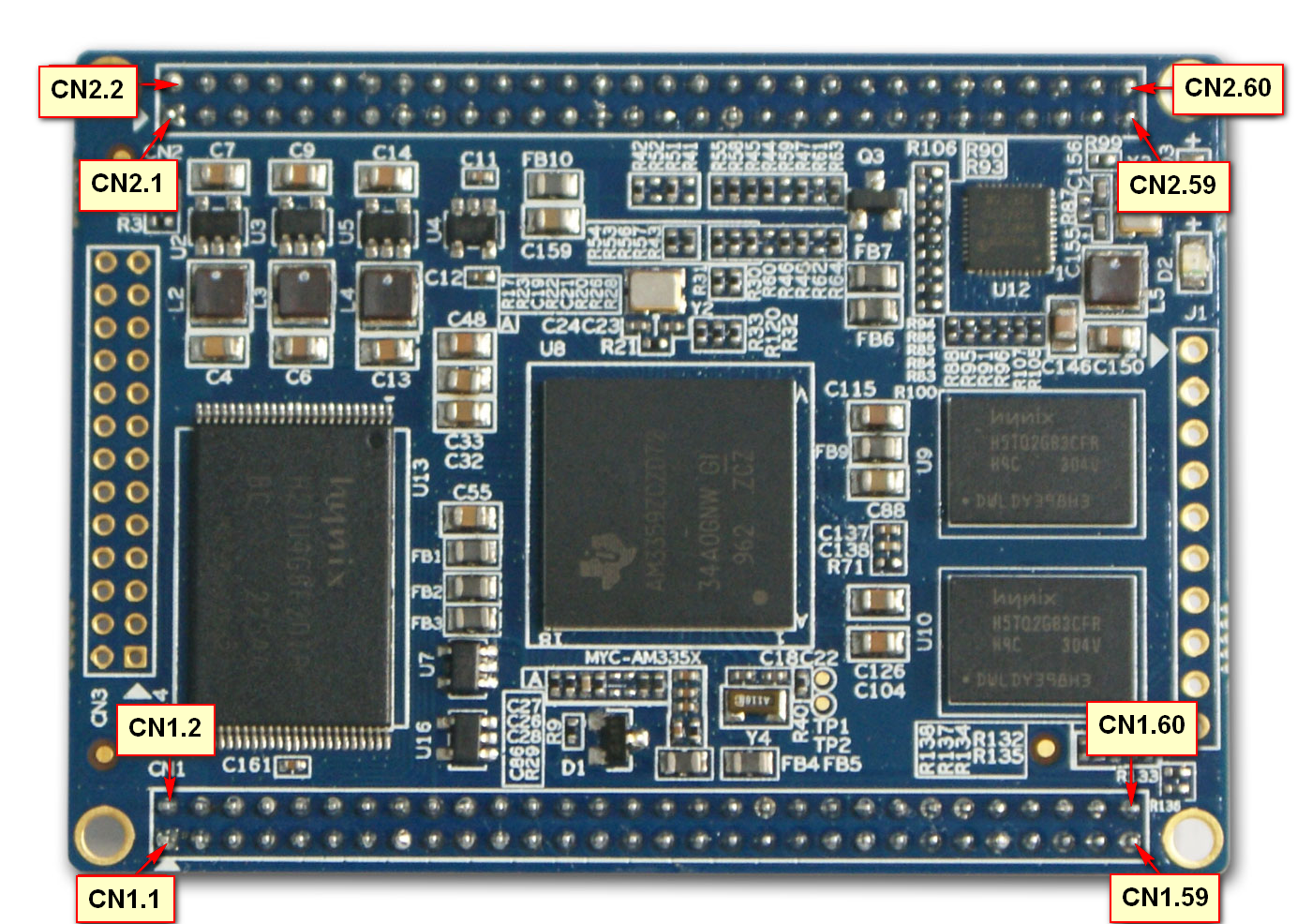

Figure 4-1 Pin Interface Order
