The MYC-AM335X CPU Module has integrated the AM335x processor, 512MB DDR3 SDRAM, 512MB Nand Flash and Gigabit Ethernet PHY chip on board and can be served as the core of your embedded system. It has two 2.0mm pitch 60-pin male expansion connectors for interconnecting with your base board, thus providing an interface for the base board to carry most of the I/O signals to and from the CPU module. One 2.0mm pitch 26-pin interface and one 2.54mm pitch 10-pin interface are also designed with only reserved solder joints which have extended a few signals for some special purpose. It can support Linux, Android and Windows Embedded Compact 7 and ideal for industrial embedded applications such as automotive, control systems, lighting, refining and processing. |

Version Record

Introduction

MYC-AM335X embedded CPU module, which uses ARM Cortex-A8 TI AM335X as major processor, is newly designed by MYIR. It operates at up to 800MHz, and integrates 512MB DDR3 SDRAM, 512MB NandFlash memory resources, Gigabit Ethernet and rich signal interfaces, which compose a minimal embedded system. Based on the MYC-AM335X CPU module, MYIR has extended MYD-AM335X Series development board. This board has rich peripherals, including high-speed USB, Audio input, Audio output, LCD interfaces, CAN interfaces, 485 interfaces, ADC, SPI, GPMC, LED, 10/100/1000Mbps Ethernet interface, JTAG debug interface, Serial port, and TF card interface, etc. MYC-AM335X CPU module is a 50mm x 70mm core module as shown in Figure 1-1:

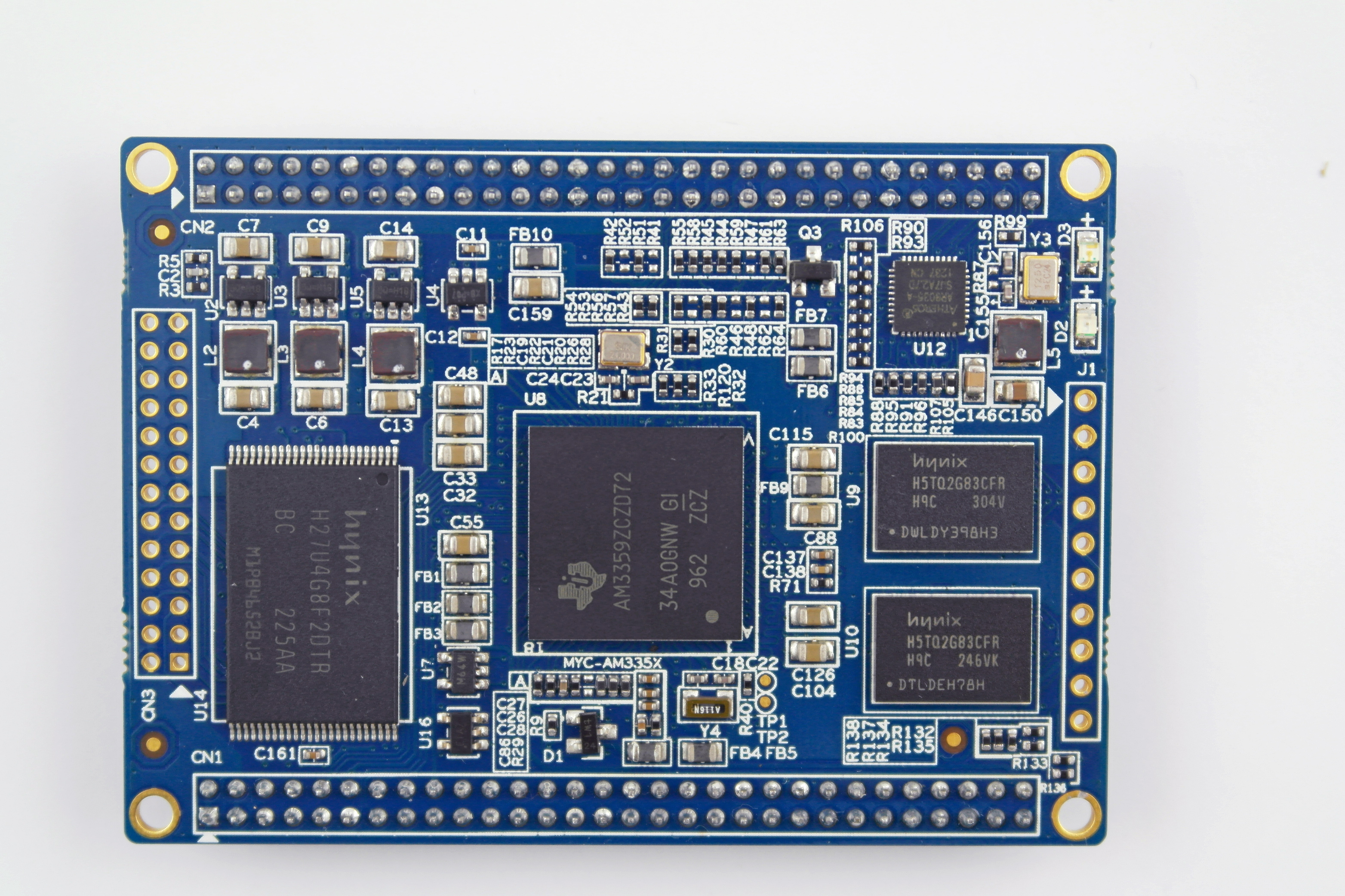

Figure 1-1 Front View

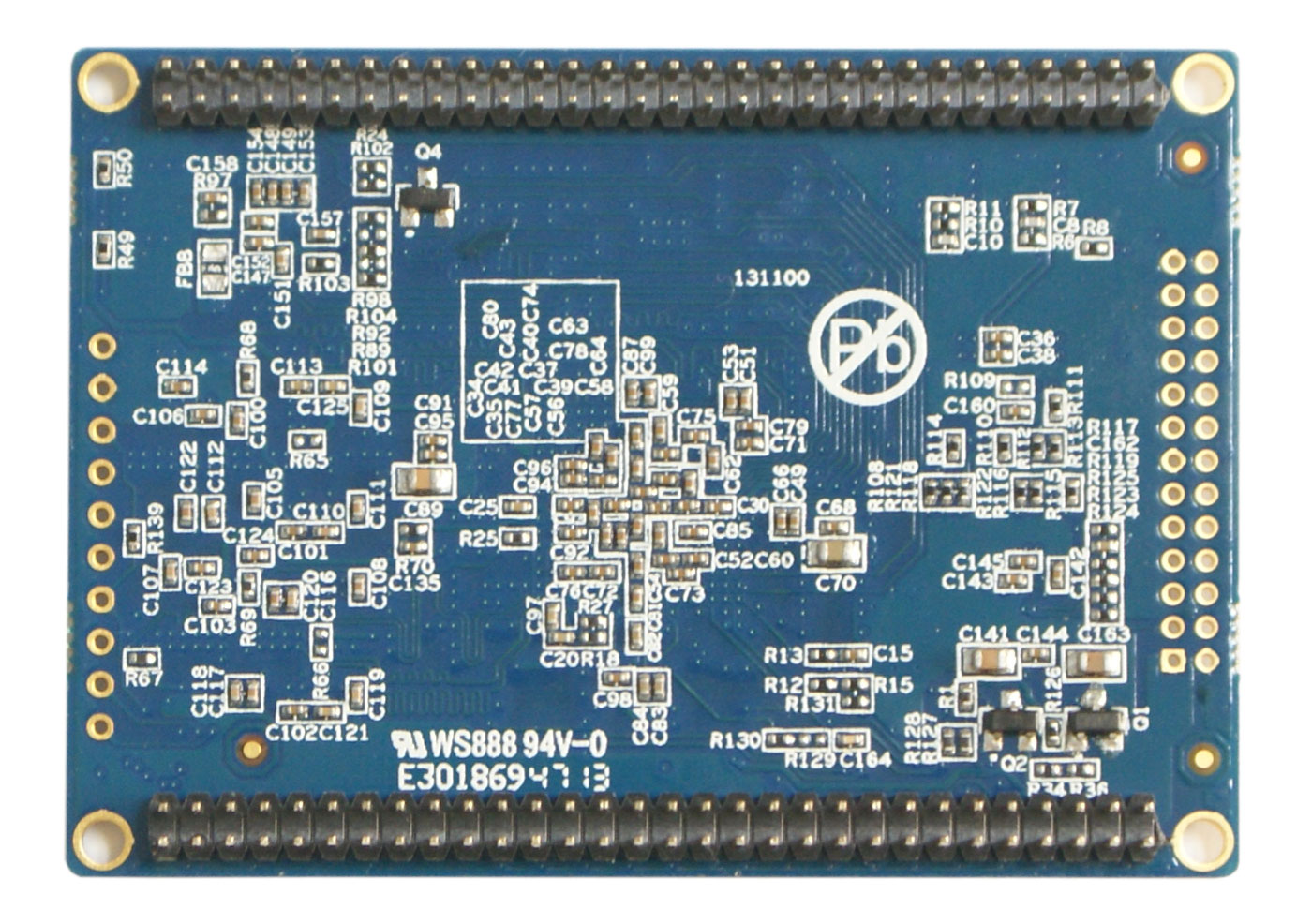

Figure 1-2 Back View
