Mechanical parameters

  • Operating Temperature:
  • Industrial Grade: -40~+85 °C
  • Commercial Grade: -20~+70° °C
  • Ambient Temperature: -50～+100°C
  • Humidity: 20%~90%, Non-Condensing
  • Mechanical Dimensions: 67.6 mm x 45.0 mm x 3.8 mm, 50g
  • PCB: 8 Layer, Flash-Gold, Lead free
  • Power Input Specification: 5 V 1.8V
  • System Power Consumption: 5V/0.28A
  • Footprint: Perforations, 200 Pin SO-DMII

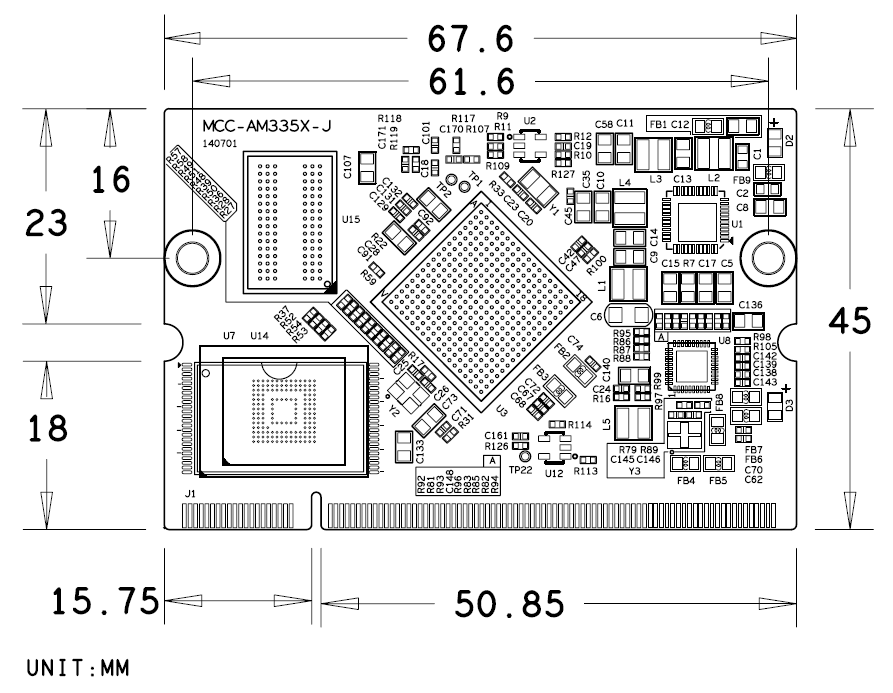

MCC-AM335X-J series CPU module mechanical dimensions are shown in Figure 5-1:

PNG

Figure 5-1 Mechanical Dimensions
