| 概 述 |
|---|
| The MCC-AM335X-J is a highly-integrated low-cost ARM embedded SOM (System on Module) supporting 1GHz Texas Instruments (TI) Sitara AM335x (AM3352, AM3354, AM3356, AM3357, AM3358 and AM3359) ARM Cortex-A8 processors |
It can support Linux, can be ideal for industrial embedded applications such as automotive, control systems, lighting, refining and processing. |
| 产品特性 |
|---|
| ·ARM Cortex-A8 Core, up to 1GHz |
| ·256/512MB DDR3, 256MB/512MB NAND Flash |
| ·Dual 10M/100M/1000M Gigabit Ethernet, 2-Port Switch, a PHY Chip |
| .Support CAN, USB HOST, USB OTG, UART, SPI |
| .LCD Controller, Up to 1080p |
| .PCB: 8 layer, Flash-Gold, Lead free |
| .Size: 67.6mm x 45 mm |
| .Footprint: 200-Pin SO-DIMM |
| .Support Linux |
| 应用领域 |
|---|
| ·Gaming Peripherals, Advanced Toys |
| ·Home and Industrial Automation |
| ·Consumer Medical Appliances |
| ·Printers Weighing Scales |
| ·Intelligence Toll Systems, Connected Vending Machines |
| ·Weighing Scales, Educational Consoles |
| 项目定制 |
|---|
| ·Matching different sizes memory chips according to customer demand |
| ·Cutting system according to customer demand |
| ·Assist the development of related driver according to customer demand |
| ·Custom backplane according to the customer's specific needs |
Revision History
| Version Number | Instruction | Date |
|---|---|---|
| V1.0 | Initial Version | 2014.07.01 |
| V1.0 | a Add Pin Description | 2014.08.20 |
| V1.1 | Product release | 2014.10.23 |
| V1.2 | Update Pin Description | 2015.06.10 |
| V1.3 | Update Pin Description for distinguishing signal used | 2015.10.27 |
Overview
MCC-AM335X-J embedded CPU module, which uses ARM Cortex-A8 TI AM335X as major processor, is newly designed by MYiR. It operates at up to 1GHz, and integrates 256/512MB DDR3 SDRAM, 256MB/512MB NAND Flash memory resources, Gigabit Ethernet and rich signal interfaces, which compose a Minimum Embedded System. Figure 1-1 shows the appearance of the product:

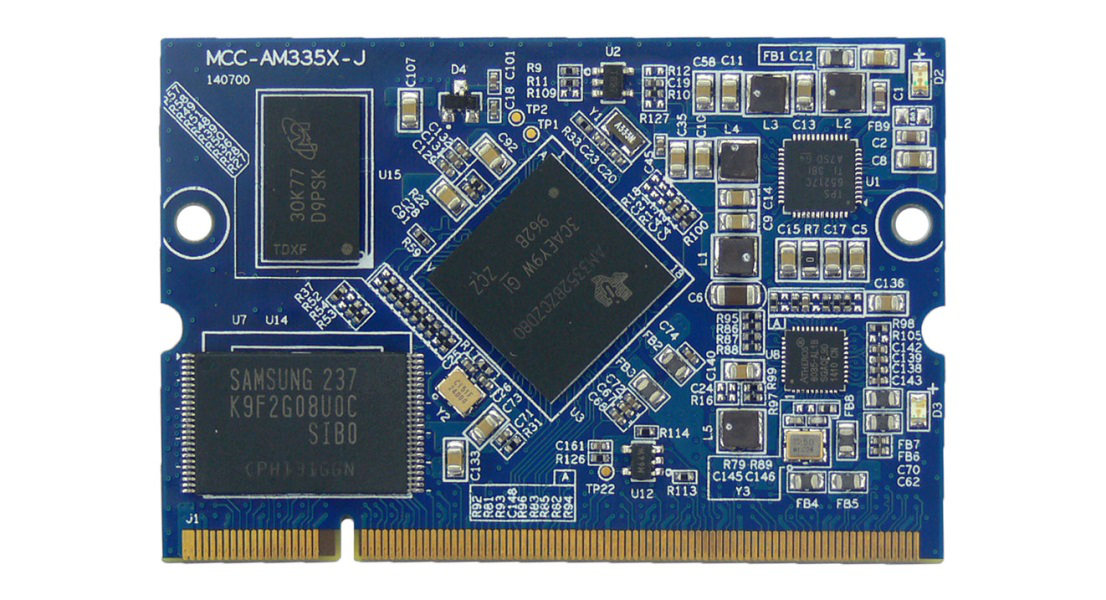

Figure 1-1 Front view
It use the NFBGA (324) of Processor package on CPU module, The size is 15.0 mm x 15.0 mm, So it can Pin to Pin Compatible with other Chip of AM335x Family. Listed below are the different in Family.
| CPU | AM3352 | AM3354 | AM3356 | AM3357 | AM3358 | AM3359 |
|---|---|---|---|---|---|---|
| Frq | 300 MHz, 600 MHz, 800 MHz, 1000 MHz | 600 MHz, 800 MHz, 1000 MHz | 300 MHz, 600 MHz, 800 MHz | 300 MHz, 600 MHz, 800 MHz | 600 MHz, 800 MHz, 1000 MHz | 600 MHz, 800 MHz |
| MIPS | 600, 1200, 1600, 2000 | 1200, 1600, 2000 | 600, 1200, 1600, - | 600, 1200, 1600, - | 1200, 1600, 2000 | 1200, 1600 |
| 3D | - | yes | - | - | yes | yes |
| RPU | - | - | PRU, - | PRU, EtherCAT | PRU, - | PRU EtherCAT |
Table 1
