6 Machine Parameter

PNG

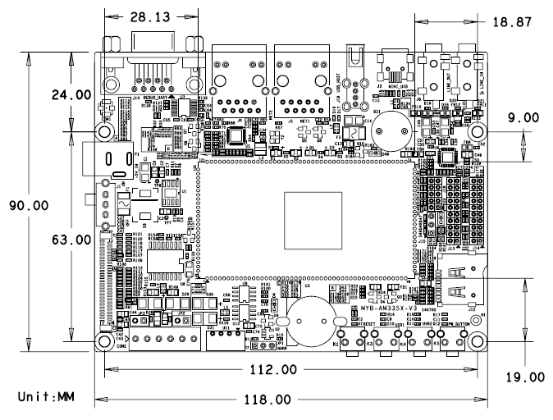

Figure 6-1

Electrical Parameters:

  • Working Temperature:
    • Industrial Grade：-40°C ~+85°C
    • Commercial Grade: -20°C ~+70°C
  • Relative humidity: 20%~90%, Non-condensing
  • The ambient temperature：-50°C ~+100°C
  • Power supply：
    • Core board：5V 3.3V
    • Cover plate：5V/0.6A power supply
  • The power consumption of the system：
    • Core board：5W
    • Cover plate：16W
  • The core board interface type：160PIN double pin interface，spacing of 1.27mm
  • PCB layer：
    • Floor: 4 layer, the production tin spraying process, independent of the ground signal layer, lead-free
    • The core board: 6 layers, gold production, independent grounding signal layer, lead-free
  • Mechanical dimensions:
    • Bottom: [118*90]mm, thickness 1.6mm
    • Core board:[62*38]mm, thickness1.6mm
