Cross Compile Qt Development Environment

  • Please refer to chapter [1.4.2] for installing cross compiler tool and setting the environment variables.
  • Install “automake”, “libtool” and “autoconf” packages, compile and install “tslib”:
    $ sudo apt-get install automake libtool autoconf
    $ cd  <WORKDIR>
    $ cp  /media/cdrom/05-Linux_Souce/Qt_Arm/tslib-1.4.tar.bz2  ./
    $ tar  -jxf  tslib-1.4.tar.bz2
    $ cd  tslib
    $ ./ts-build
    $ make install

Note: If error occurs on executing “ts-build”, modify the cross compiler tool path in “ts-build” file.

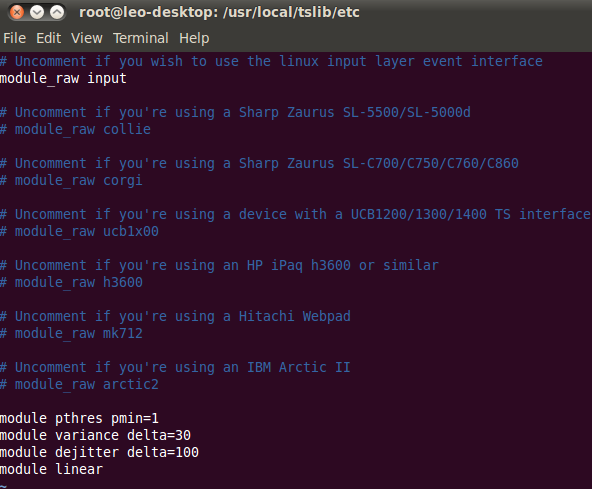

After compilation, “tslib” will be installed under directory “/usr/local/tslib”. Replace the text "# module_raw input" in the second line of “tslib/etc/ts.conf” under current directory with "module_raw input". Be sure that it must be top grid as shown in Fig.6-1:

PNG

图 6-1

  • Build Qt

Copy Qt source code to the working directory:

    $ cd <WORKDIR>
    $ cp  \
    /media/cdrom/05-Linux_Source/Qt_Arm/qt-everywhere-opensource-src-4.8.5.tar.bz2\     ./

Install necessary toolkits:

    $ sudo apt-get install xorg-dev libfontconfig1-dev
    libfreetype6-dev libx11-dev libxcursor-dev libxext-dev
    libxfixes-dev libxft-dev libxi-dev libxrandr-dev libxrender-dev

Begin to Compile:

    $ tar  -jxf  qt-everywhere-opensource-src-4.8.5.tar.bz2
    $ cd  qt-everywhere-opensource-src-4.8.5
    $ ./qt-build
    $ sudo make install

After compilation, qt-4.8.5 will be installed to directory “/opt/qt-4.8.5”.
